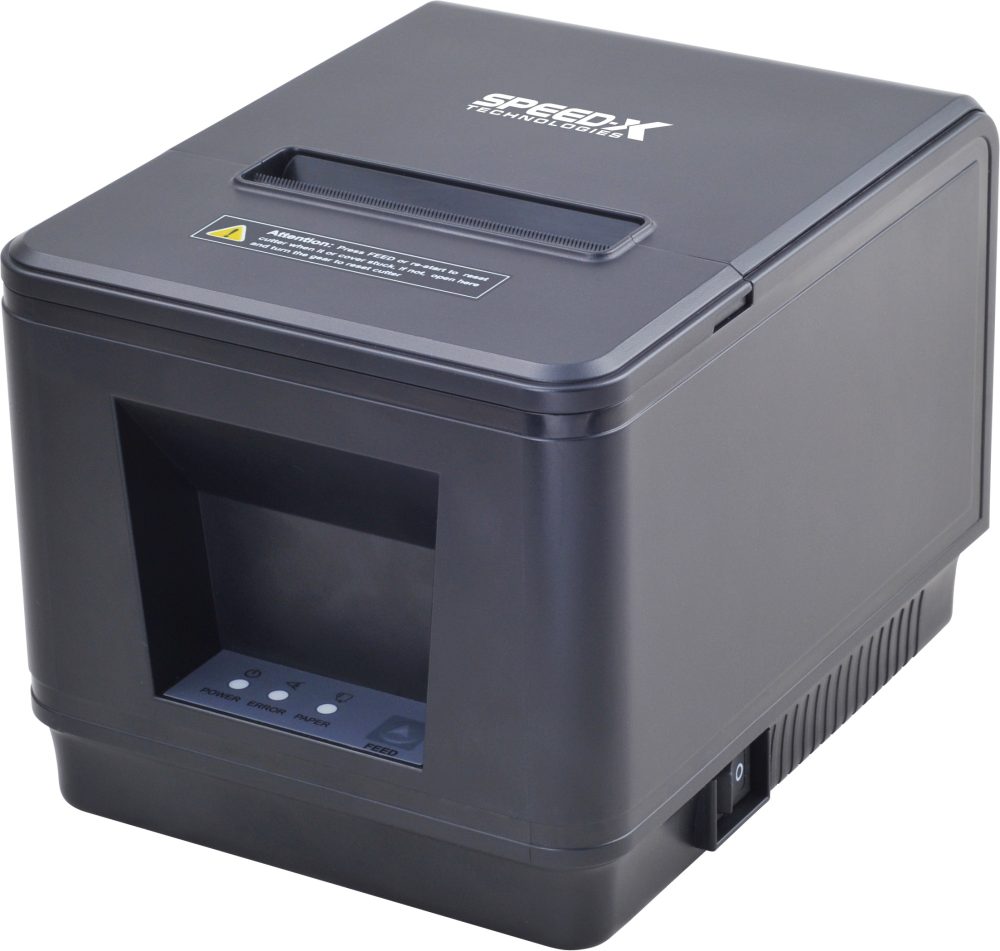

SPEED-X 300U 80MM Thermal Receipt Printer USB Interface 300mm/s Printing Speed

Fast and high-speed printing
Industry-first true grayscale printing of graphics
Increased flexibility with a standard built-in USB in addition
to have a USB Interface
Ease-of-use features including drop-in paper loading,
auto-cutter and status LEDs
Handhelds 80mm or 58mm paper roll size



Product Description
Printing method Direct thermal printing
Print Width Paper width 72mm
Point density 576 points/line or 512 points/line
Print speed 300 mm/sec
Connector USB
Printing paper 79.5 ± 0.5 mm × 80 mm
Line spacing 3.75 mm (line spacing can be adjusted by command)
Some columns 80mm paper: 80mm paper: Font A – 42 columns or 48 columns /
Font B – 56 columns or 64 columns / plain, traditional – 21 columns or 24 columns
Character size ANK characters, Font A: 1.5 × 3.0mm (12 × 24 points)
Font B: 1.1 × 2.1mm (9 × 17 points)
Jane / Traditional: 3.0 × 3.0mm (24 × 24 points)
Expanded font PC347 (Standard Europe), Katakana,
PC850 (Multi-language), PC860 (Portuguese),
PC863 (Canada-France), PC865 (Northern Europe),
Western European, Greek, Hebrew, Eastern European, Iran, WPC1252, PC866 (Cyrillic #2),
PC852 (Latin2), PC858, IranII, Latvia, Arabic, PT151 (1251)
Barcode Type UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) /
Input buffer 64k bytes
Flash Memory NV 256k bytes
Power adapter Input: AC 110V / 220V, 50~60Hz
Power supply Output: DC 24V / 2.5A
Cash drawer DC 24V / 1A
Weight 1.0 kg
Pack 184×140×135mm (D×W×H)
Work environment Temperature: 0 45 ° C, Humidity: 10 80%
Storage Environment Temperature: -10 60°C, Humidity: 10 90% (non-condensing)

Additional information

Weight 2.0 kg
